DCG -Cycloidal Gearboxes

CUSTOMIZED DESIGN AND PRODUCTION:

Are you looking for a customized Design?

Custom-made projects are competitive advantages that allow companies to conquer market sectors with greater ease,

making machines unique, which use customized cycloidal or planetary gearboxes.

we have been specialized in customized gearboxes,

that the majority of our customers have used and use every day in the design and construction of machines with characteristics much higher than the standard.

Discover the complete range of Andrizds & Getriebe AG   Gears gearboxes, for different application sectors,

such as centrifugal separation, steel industry, chemicals and automation, with high reliability over time and dedicated assistance from our staff.

We create tailor-made projects based on the specific needs of the customer, creating the prototype at the same cost of production, without surcharges.

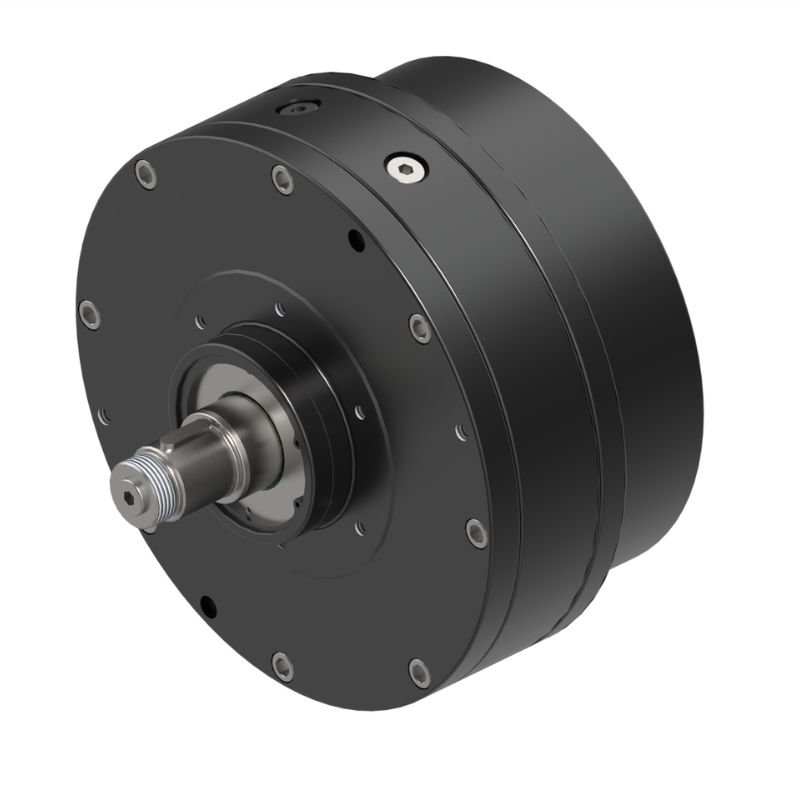

Cycloidal Gearboxes

Andrizds & Getriebe AG   Gears Cycloidal Gearboxes guarantee maximum reliability and durability over time

Basic features:

13 modular construction sizes

11 gears ratios from 11:1 to 87:1 ( for higher ratios the version with cycloidal/planetary gearbox is recommended)

Torque: from 250Nm to 45.000 Nm

Dynamic balance according ISO1940

Execution for fitting: flanged with a male and female centring

Output connection: hub with hole spline according to DIN5480

Combination with epicycloid gears

Imput shaft with spline

Accessories for reducer exit hub: splined rods, flanged shaft

Grease lubrication up to size O18 and oil lubrication up to size O24

ATEX Certification in accordance with group 2

Specific material cover available, suitable for food application.

Construction features:

High transmissible torque/overall dimension ratios

Compact construction: high transmission/dimension ratios

Overloaded up to 500% of rated torque

High output even with high transmission ratios

High torsion adapting thanks to loads distribuited over 50% of contact surface

Low noise level thanks to transmission by rolling friction.

Cam wheels in special steel

Dimension: from ⱷ150mm to ⱷ750mm

Mounted with seals and O-rings resistant to high temperature and pressure

Request a Consultation

We have been manufacturing high quality gearboxes ， helping over 100 international companies maintain an important competitive advantage.

We do this by creating highly reliable gearboxes that are customized to the specific needs of the customer.

We can offer a sample of customized gearboxes at the same price as the series.

This way you will appreciate the enormous benefits of purchasing a custom gearbox at a reasonable price.
