PG Bevel Gearbox

High precision bevel gearbox   Version PG

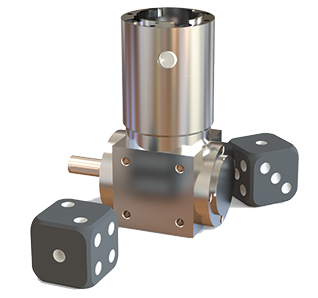

Miniature Applications

Our miniature VP Series is the best option available on the market for all your miniature automation applications, such as medical and semiconductor, when high performance is required and space is at a premium.

The housings are manufactured from high-strength aluminum for a gearbox that is light weight, dissipates heat efficiently, and resists corrosion.

VPG & PG   Series Performance Plus Mini Right Angle Spiral Bevel Gearboxes

When you need a spiral bevel gearbox that you can count on, choose PG

Highest torque density for the size

Sizes 27, 33, and 45 mm

More ratios for the size: 1:1 to 4:1

High Efficiency 98%

Nominal Torque capacity of 1.3 to 16 Nm

Smooth hollow shaft output option (33 & 45 mm)

High-strength aluminum housing

Sealed and lubricated for life with synthetic oil

VPG Series with integrated motor mount

Ideal for Medical and Semiconductor applications

PG -Series Spiral Bevel Gearboxes

PG-Series spiral bevel gearboxes are highly configurable, reliable, and economical right angle solutions designed for use in a wide range of applications.

Precision cut spiral bevel gears are hardened and then lapped in pairs for ideal tooth contact and torque transmission, enabling 94-98% efficiencies and backlash between 10 and 30 arcmin (reduced backlash versions available).

Offered in 11 frame sizes, they can be constructed with a multitude of shaft configurations, and oriented in any direction to easily integrate into your machine design.

Frame sizes 65 to 350 mm

See our Miniature V-Series for sizes 35 and 45

Many configurations

Single or dual input shafts

Single, dual, or hollow output shafts

Gear ratios up to 6:1 (varies by size)

High efficiency of 94-98%

Lubricated for life with synthetic oil
